HTND-1500 Intelligent Viscosity-Online Analyzer (IV-OA)

Date:03-26  Hits:1446  Belong to:HTND-1500 Intelligent Viscosity-Online Analyzer (I
HTND-1500 Intelligent Viscosity-Online Analyzer (IV-OA)

HTND-1500 Intelligent Viscosity-Online Analyzer (IV-OA)



Applicable to continuous and rapid online analysis for various fluid-type substances in petrochemical production processes.
Technical Parameters
Viscosity Testing Range: 0~1000mPa·s, results of the measurement correspond to GB/T 265-1988
Temperature Testing Range: 0~200
Power Supply: built-in EMI wave filter, comply with VL1850, IEC950, CCEE, and other security standards.
Explosion-proof Grade: Exd II CT4
Protection Level: IP56
Sample Requirement: liquid viscosity, temperature within the range demanded, pressure<3MPa, no visible droplets, impurities, or bubbles
Output: RS485/modbus Agreement or 4~20mADC
Probe Size: Φ235*H500mm
Control Box:440L*265W*400Hmm
Installation: Flange Installation
Applicable Pipe Diameter:DN50~300

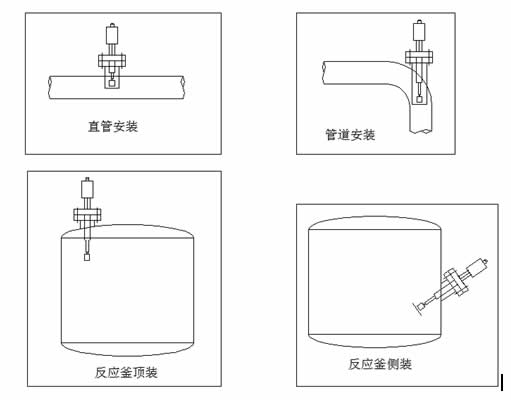

Installation Methods
